Protect Your Equipment and Personnel

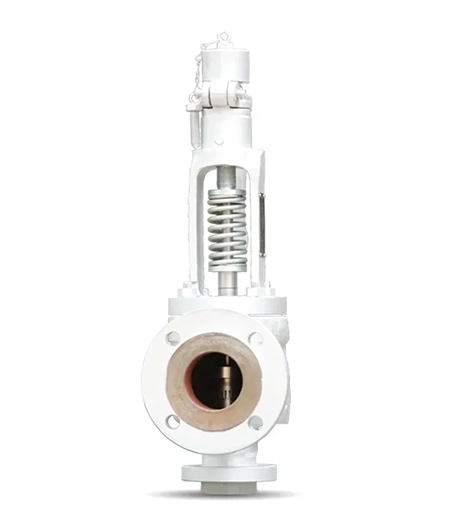

Vytal Controls Pvt Ltd Full Lift Full Nozzle Safety Relief Valve is designed confirming to A.P.I. standard 526. Vytal Controls Pvt Ltd is a top-notch safety valve manufacturer. Our safety relief valve has the critical accuracy to assure performance and protects expensive equipment from dangerous high pressures. These valves are knowledgeably designed for Power, Oil Refinery, Petrochemical and Process industries and are 100% factory tested for “Zero defect”.

Safety Valves tested on air, Liquid relief valves tested on water, and Safety Relief Valves for gases tested on air.

Download Brochure

Technical Specification

Technical Specification for Safety Relief Valves.
Type
Full Lift Full Nozzle, Conventional
Size
0.5 x 0.5 Inch to 8 x 10 Inch
Nozzle Designation
‘D’ to ‘T’ as per API
Rating
CL 150 to CL 2500
Body MOC
Carbon Steel / Stainless Steel / Alloy Steel
Size Standard
API & Non - API

Benefits Of Safety Relief Valve

Safety Relief Valves are important in various industries. They are designed to protect equipment from high pressures. Here are the benefits of safety relief valves.

Prevents Equipment Damage

The safety relief valve automatically releases pressure when it exceeds the preset limit. It protects expensive equipment from dangerous high-pressure conditions that could damage them.

Help Reduce Penalties

Many industries need to comply with regulations. For that, they need to follow strict safety rules and standards. Safety relief valves maintain compliance and reduce the penalty risk.

Enhanced System Efficiency

This valve helps maintain pressure within safe limits and ensures the system functions properly. It prevents disruptions that could result from overpressure situations.

Cost-Effective Investment

Investing in safety relief valves is a lucrative way to protect expensive equipment. It helps you avoid costly repairs, downtime, or replacement because of overpressure damage.
  • Full nozzle with self aligning temperature equalizing flat face valve disc.
  • Careful preparation of the seating surfaces to optical precision and cobalt based overlays on trim maintain premium tightness.
  • Top guided design to ensure full bore discharge.
  • Options like Bellows, O ring, Variety of top fittings available to suit the duty conditions.
  • Size rang 25mm to 200mm with orifices ‘D’ through ‘T’
  • Production Testing to ASME Section VII UG -136 (d).
  • Quality Assurance Plan complies with section I & VIII Of the ASME code.

Vytal Controls Pvt Ltd pilot-operated safety Relief Valve is an autonomous valve. It does not need any auxiliary source of power to operate. The fluid under pressure in the equipment to be protected is used to actuate all operational modes.

Existing codes reflect the capabilities of both past and present Safety Relief Valve designs and allow for an accumulation above the maximum allowable working pressure before full capacity is achieved. A conventional spring loaded valve requires upto 10% over pressure to achieve full lift. This can result in the system being subjected to excessive stress during an emergency. Vytal Controls Pvt Ltd pilot operated Safety Relief Valves require no over pressure for full lift. This means the valve can be set at the desired relieving point without worry of undue system stress and possible ultimate damage.

Designed for high pressure relief pressurised spheres, vessels and pipelines. Valves are pilot operated to provide lead-free operation and full lift at set pressure. Built in accordance with ASME Boiler and Pressure Vessel Code, Section VIII, Div.I. Size range 25 mm to 200 mm inlet.

  • Full lift at set pressure
  • Leak-free operation upto set pressure
  • Eliminates blowdown loss.
